      Spring return required

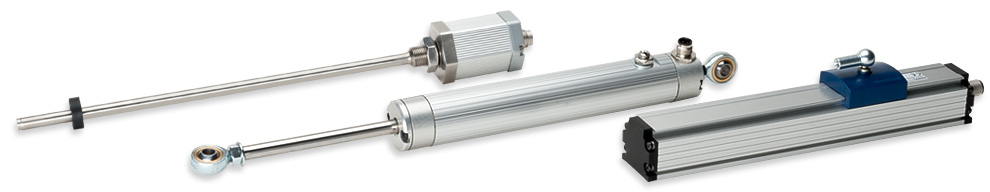

      Click on a linear sensor

      When your application requires a sensor with a return spring, the following sensors are possible solutions to your application needs:

      TE1, TR/TRS, TEX, FTI, KL

      TE1 Series

      • Push rod or return-spring versions

      • Compact 18 mm square profile

      • Linearity to ±0.075 %

      • Unaffected by magnetic fields

      • Current or voltage output

      • Increasing or decreasing output

      • Life: 100 million movements

      • Repeatability: ±0.002 mm

      Product Information
      TR/TRS Series

      • Through-shaft design

      • Enclosed return spring

      • Plug and Cable connections

      • Repeatability to ±0.002 mm

      • Independent linearity to ±0.075%

      • Stroke lengths of 10, 25, 50, 75 and 100 mm

      Product Information
      TEX Series

      • Spring return mounting

      • Pivot head mounting

      • Shaft actuated

      • Compact size

      • Stroke lengths 10 to 300 mm

      • Repeatability ≤ 0.01 mm

      • Sealed to IP 67

      • Independent linearity to ±0.05 mm

      Product Information
      FTI Series

      • Inductive sensor with temperature compensation 0.1%

      • Short stroke position measurement

      • Standardized current output

      • Absolute linearity to 0.1%

      • Resolution better than 0.01 mm

      • 10 mm stroke length

      Product Information
      KL Series with Return Spring

      • Linearity to ±0.025%

      • Stroke lengths 10, 25, 50, 75, and 100 mm

      • Compact size

      Product Information
