Connection Diagrams

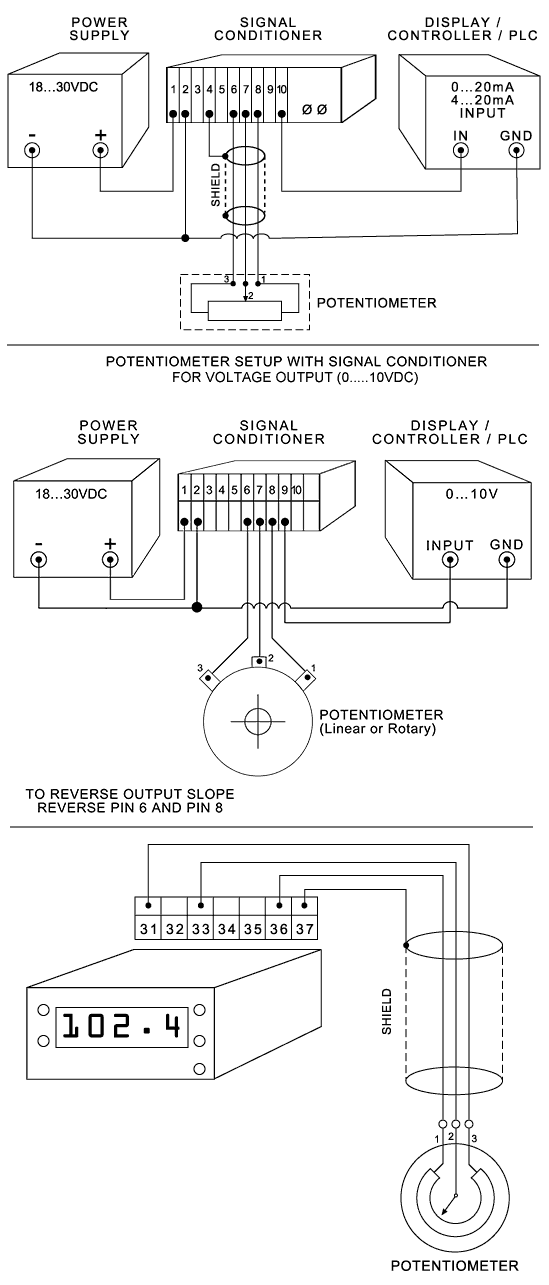

How do I connect Novotechnik Potentiometers?

A: See drawings below. | Download Acrobat .pdf file |

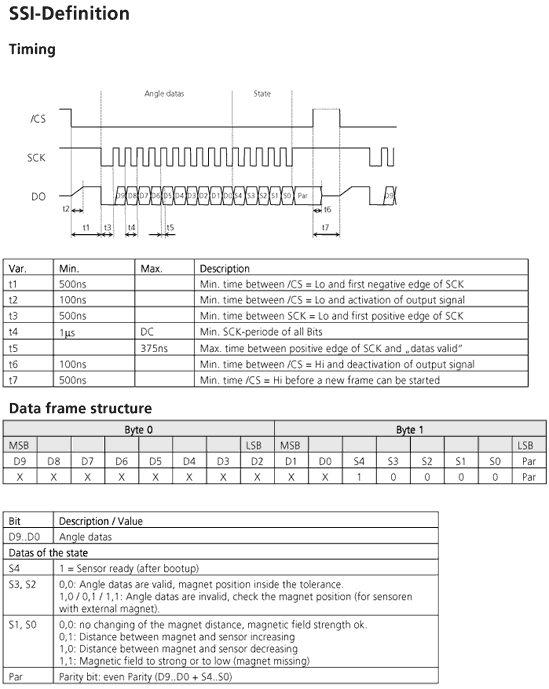

SSI (Serial Synchronous Interface) Specifications

SSI is a widely used serial interface between an absolute position sensor and a controller. SSI uses a series of clock pulses from a controller to initiate a gated output from the sensor. This information pertains to Contelec sensor products with SSI outputs.
