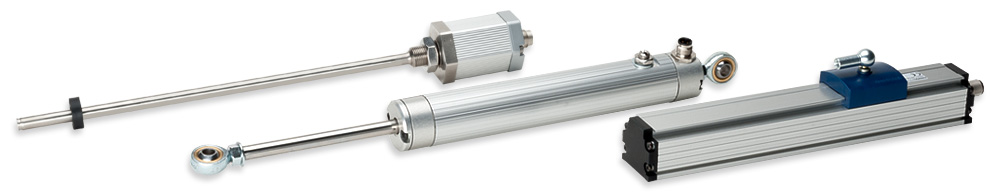

      Linear In Cylinder

      Designed for hydraulic and pneumatic applications, Novotechnik in-cylinder position sensors feature magetostrictive non-contacting technology for long life.

      TM1 SERIES

      Magnetostrictive sensors designed for in-cylinder or outside of cylinder use in hydraulic and pneumatic applications—even in tight-space applications. Available in screw flange or plug-in flange models.

      MANUALS

      CAD

      CONTACT

      Style: Plug-In Flange • Supply: 12/24 V • For mobile applications
      (Scroll down for industrial versions)
      Stroke Length Absolute Linearity Life (mech.) Sealing Outputs Data Sheet

      50 to 2,000 mm

      ≤ ±0.04 % F.S.
      (minimum 0.3 mm)

      ∞

      IP69K

      0.25 to 4.75 V, 0.5 to 4.5 V,
      0.1 to 10 V

      50 to 2,000 mm

      ≤ ±0.04 % F.S.
      (minimum 0.3 mm)

      ∞

      IP69K

      4 to 20 mA

      50 to 2,000 mm

      ≤ ±0.04 % F.S.
      (minimum 0.3 mm)

      ∞

      IP69K

      CANopen

      50 to 2,000 mm

      ≤ ±0.04 % F.S.
      (minimum 0.3 mm)

      ∞

      IP69K

      CAN SAE J1939

      Style: Screw Flange • Supply: 12/24 V • For mobile applications
      (Scroll down for industrial versions)
      Stroke Length Absolute Linearity Life (mech.) Sealing Outputs Data Sheet

      50 to 2,000 mm

      ≤ ±0.04 % F.S.
      (minimum 0.3 mm)

      ∞

      IP69K

      0.25 to 4.75 V, 0.5 to 4.5 V,
      0.1 to 10 V

      50 to 2,000 mm

      ≤ ±0.04 % F.S.
      (minimum 0.3 mm)

      ∞

      IP69K

      4 to 20 mA

      50 to 2,000 mm

      ≤ ±0.04 % F.S.
      (minimum 0.3 mm)

      ∞

      IP69K

      CANopen

      50 to 2,000 mm

      ≤ ±0.04 % F.S.
      (minimum 0.3 mm)

      ∞

      IP69K

      CAN SAE J1939

      Style: Plug-In Flange • Supply: 24 V • For industrial applications
      (Scroll up for mobile versions)
      Stroke Length Absolute Linearity Life (mech.) Sealing Outputs Data Sheet

      50 to 2,000 mm

      ≤ ±0.04 % F.S.
      (minimum 0.3 mm)

      ∞

      IP69K

      0.25 to 4.75 V, 0.5 to 4.5 V,
      0.1 to 10 V

      50 to 2,000 mm

      ≤ ±0.04 % F.S.
      (minimum 0.3 mm)

      ∞

      IP69K

      4 to 20 mA

      50 to 2,000 mm

      ≤ ±0.04 % F.S.
      (minimum 0.3 mm)

      ∞

      IP69K

      CANopen

      50 to 2,000 mm

      ≤ ±0.04 % F.S.
      (minimum 0.3 mm)

      ∞

      IP69K

      CAN SAE J1939

      Style: Screw Flange • Supply: 24 V • For industrial applications
      (Scroll up for mobile versions)
      Stroke Length Absolute Linearity Life (mech.) Sealing Outputs Data Sheet

      50 to 2,000 mm

      ≤ ±0.04 % F.S.
      (minimum 0.3 mm)

      ∞

      IP69K

      0.25 to 4.75 V, 0.5 to 4.5 V,
      0.1 to 10 V

      50 to 2,000 mm

      ≤ ±0.04 % F.S.
      (minimum 0.3 mm)

      ∞

      IP69K

      4 to 20 mA

      50 to 2,000 mm

      ≤ ±0.04 % F.S.
      (minimum 0.3 mm)

      ∞

      IP69K

      CANopen

      50 to 2,000 mm

      ≤ ±0.04 % F.S.
      (minimum 0.3 mm)

      ∞

      IP69K

      CAN SAE J1939
      TH1 SERIES

      Designed for direct, precise and absolute measurement of travel length in-cylinders operating up to 350 bar/600 peak.

      MANUALS

      CAD

      CONTACT

      Stroke Length Linearity Life (mech.) Sealing Outputs Data Sheets

      50 to 4,250 mm

      ≤ ±0.02 %
      (minimum ±50 µm)

      ∞

      IP68

      0.1 to 10 VDC,
      0.1 to 20 mA,
      4 to 20 mA

      50 to 4,250 mm

      < ±50 μm up to
      1,000 mm
      < ±80 μm up to
      2,500 mm
      < ±120 μm up to
      4,250 mm

      ∞

      IP68

      Start-Stop-Pulse

      50 to 4,250 mm

      < ±25 μm up to 250 mm
      < ±30 μm up to 750 mm
      < ±50 μm up to
      1,000 mm
      < ±80 μm up to
      2,500 mm
      < ±120 μm up to
      4,250 mm

      ∞

      IP68

      SSI

      50 to 4,250 mm

      < ±25 μm up to 250 mm
      < ±30 μm up to 750 mm
      < ±50 μm up to
      1,000 mm
      < ±80 μm up to
      2,500 mm
      < ±120 μm up to
      4,250 mm

      ∞

      IP68

      CANopen

      50 to 4,250 mm

      < ±25 μm up to 250 mm
      < ±30 μm up to 750 mm
      < ±50 μm up to
      1,000 mm
      < ±80 μm up to
      2,500 mm
      < ±120 μm up to
      4,250 mm

      ∞

      IP68

      IO Link

      Magnetic Marker Options
