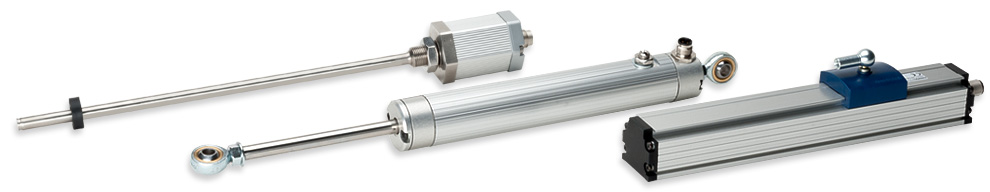

Linear Rod Type
Novotechnik linear rod type position sensors are available in stroke lengths from 10 to 900 mm. They have high tolerance to adverse environmental conditions and provide long operating life, with various features, to meet the requirements of most any position sensor application.
TE1 Series
Compact position sensor with integrated signal conditioning.
MANUALS
CAD
CONTACT
| Stroke Length | Linearity | Life (mech.) | Sealing | Outputs | Data Sheet | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25 mm |
≤ ±0.2 % |
100 million movements |
IP40 |
0 to 10 V, 10 to 0 V, 4 to 20 mA, |
  |
|
|
|
|
|
|
|
|
|
|
50 mm |
≤ ±0.15 % |
100 million movements |
IP40 |
0 to 10 V, 10 to 0 V, 4 to 20 mA, |
  |
|
|
|
|
|
|
|
|
|
|
75 mm |
≤ ±0.1 % |
100 million movements |
IP40 |
0 to 10 V, 10 to 0 V, 4 to 20 mA, |
  |
|
|
|
|
|
|
|
|
|
|
100 mm |
≤ ±0.075 % |
100 million movements |
IP40 |
0 to 10 V, 10 to 0 V, 4 to 20 mA, |
  |
|
|
|
|
|
|
|
|
|
|
150 mm |
≤ ±0.075 % |
100 million movements |
IP40 |
0 to 10 V, 10 to 0 V, 4 to 20 mA, |
  |
|
|
|
|
|
|
|
|
|
LS1 Series
This non-contacting inductive sensor series features powerful customization and programmability.
MANUALS
CAD
CONTACT
| Stroke Length | Linearity | Life (mech.) | Sealing | Outputs | Data Sheet | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25 mm |
≤ ±0.1 % |
100 million movements |
IP40 |
0.1 to 10 VDC, 10 to 0.1 VDC, |
  |
|
|
|
|
|
|
|
|
|
|
50 mm |
≤ ±0.15 % |
100 million movements |
IP40 |
0.1 to 10 VDC, 10 to 0.1 VDC, |
  |
|
|
|
|
|
|
|
|
|
|
75 mm |
≤ ±0.15 % |
100 million movements |
IP40 |
0.1 to 10 VDC, 10 to 0.1 VDC, |
  |
|
|
|
|
|
|
|
|
|
|
100 mm |
≤ ±0.15 % |
100 million movements |
IP40 |
0.1 to 10 VDC, 10 to 0.1 VDC, |
  |
|
|
|
|
|
|
|
|
|
|
150 mm |
≤ ±0.15 % |
100 million movements |
IP40 |
0.1 to 10 VDC, 10 to 0.1 VDC, |
  |
|
|
|
|
|
|
|
|
|
|
200 mm |
≤ ±0.15 % |
100 million movements |
IP40 |
0.1 to 10 VDC, 10 to 0.1 VDC, |
  |
|
|
|
|
|
|
|
|
|
KL Series
13 mm wide housing makes the KL Series a good choice for limited space applications.
MANUALS
CAD
CONTACT
| Stroke Length | Linearity | Life (mech.) | Sealing | Outputs | Data Sheet | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10 mm |
≤ ±1 % |
10 million movements |
IP65 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
25 mm |
≤ ±1 % |
10 million movements |
IP65 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
50 mm |
≤ ±1 % |
10 million movements |
IP65 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
75 mm |
≤ ±1 % |
10 million movements |
IP65 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
100 mm |
≤ ±0.25 % |
10 million movements |
IP65 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
T/TS Series
A ball coupling enables backlash-free operation of the T/TS Series.
MANUALS
CAD
CONTACT
| Stroke Length | Linearity | Life (mech.) | Sealing | Outputs | Data Sheet | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25 mm |
≤ ±1 % |
100 million movements |
IP40 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
50 mm |
≤ ±1 % |
100 million movements |
IP40 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
75 mm |
≤ ±1 % |
100 million movements |
IP40 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
100 mm |
≤ ±0.25 % |
100 million movements |
IP40 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
150 mm |
≤ ±0.075 % |
100 million movements |
IP40 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
TEX Series
Multiple mounting options and high resolution are key TEX Series features.
MANUALS
CAD
CONTACT
| Stroke Length | Linearity | Life (mech.) | Sealing | Outputs | Data Sheet | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10 mm |
≤ ±0.25 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
25 mm |
≤ ±0.2 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
50 mm |
≤ ±0.1 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
75 mm |
≤ ±0.1 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
100 mm |
≤ ±0.1 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
125 mm |
≤ ±0.05 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
150 mm |
≤ ±0.05 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
175 mm |
≤ ±0.05 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
200 mm |
≤ ±0.05 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
250 mm |
≤ ±0.05 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
300 mm |
≤ ±0.05 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
LWH Series
Sensors are designed for direct, absolute measurement of displacement or length.
MANUALS
CAD
CONTACT
| Stroke Length | Linearity | Life (mech.) | Sealing | Outputs | Data Sheet | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
75 mm |
≤ ±0.1 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
100 mm |
≤ ±0.1 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
130 mm |
≤ ±0.09 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
150 mm |
≤ ±0.08 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
175 mm |
≤ ±0.07 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
200 mm |
≤ ±0.07 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
225 mm |
≤ ±0.07 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
250 mm |
≤ ±0.07 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
275 mm |
≤ ±0.07 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
300 mm |
≤ ±0.06 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
325 mm |
≤ ±0.05 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
350 mm |
≤ ±0.05 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
375 mm |
≤ ±0.05 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
400 mm |
≤ ±0.05 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
450 mm |
≤ ±0.05 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
500 mm |
≤ ±0.05 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
550 mm |
≤ ±0.05 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
600 mm |
≤ ±0.05 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
750 mm |
≤ ±0.04 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
900 mm |
≤ ±0.04 % |
100 million movements |
IP54 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|

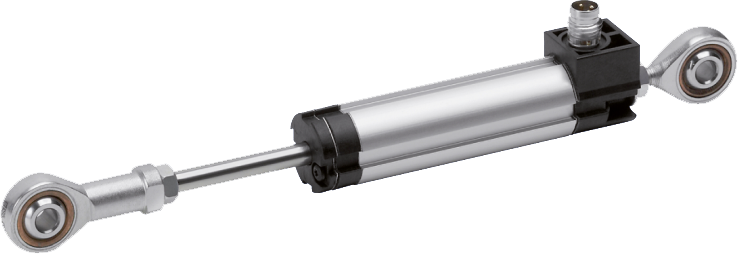

TX2 Series (pivot head)
Very compact dimensions and heavy-duty design characterize this sensor series.
MANUALS
CAD
CONTACT
| Stroke Length | Linearity | Life (mech.) | Sealing | Outputs | Data Sheet | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25 mm |
≤ ±0.2 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
50 mm |
≤ ±0.1 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
75 mm |
≤ ±0.1 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
100 mm |
≤ ±0.1 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
150 mm |
≤ ±0.05 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
200 mm |
≤ ±0.05 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
250 mm |
≤ ±0.05 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
300 mm |
≤ ±0.05 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
LWG Series
Mountable backlash-free pivot heads allow up to ±12.5° of free movement.
MANUALS
CAD
CONTACT
| Stroke Length | Linearity | Life (mech.) | Sealing | Outputs | Data Sheet | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
75 mm |
≤ ±0.1 % |
50 million movements |
IP65 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
100 mm |
≤ ±0.1 % |
50 million movements |
IP65 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
150 mm |
≤ ±0.08 % |
50 million movements |
IP65 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
225 mm |
≤ ±0.07 % |
50 million movements |
IP65 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
300 mm |
≤ ±0.06 % |
50 million movements |
IP65 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
360 mm |
≤ ±0.05 % |
50 million movements |
IP65 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
450 mm |
≤ ±0.05 % |
50 million movements |
IP65 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
500 mm |
≤ ±0.05 % |
50 million movements |
IP65 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
600 mm |
≤ ±0.05 % |
50 million movements |
IP65 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
750 mm |
≤ ±0.04 % |
50 million movements |
IP65 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
LWX-003 Series (pressure EQ)
All metal housing, LWX Series sensors have corrosion resistance and pressure equalization.
MANUALS
CAD
CONTACT
| Stroke Length | Linearity | Life (mech.) | Sealing | Outputs | Data Sheet | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50 mm |
≤ ±0.2 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
75 mm |
≤ ±0.1 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
100 mm |
≤ ±0.1 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
150 mm |
≤ ±0.08 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
175 mm |
≤ ±0.07 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
225 mm |
≤ ±0.07 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
250 mm |
≤ ±0.07 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
300 mm |
≤ ±0.06 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
360 mm |
≤ ±0.05 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
450 mm |
≤ ±0.05 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
500 mm |
≤ ±0.05 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
600 mm |
≤ ±0.05 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
750 mm |
≤ ±0.04 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
LWX-004 Series (pressure EQ w/protective sleeve)
Replaces LWX-002 Series
Adds steel shaft protection to an already robust LWX-003.
MANUALS
CAD
CONTACT
| Stroke Length | Linearity | Life (mech.) | Sealing | Outputs | Data Sheet | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50 mm |
≤ ±0.2 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
75 mm |
≤ ±0.1 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
100 mm |
≤ ±0.1 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
150 mm |
≤ ±0.08 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
175 mm |
≤ ±0.07 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
225 mm |
≤ ±0.07 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
250 mm |
≤ ±0.07 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
300 mm |
≤ ±0.06 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
360 mm |
≤ ±0.05 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
450 mm |
≤ ±0.05 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
500 mm |
≤ ±0.05 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
600 mm |
≤ ±0.05 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
|
750 mm |
≤ ±0.04 % |
50 million movements |
IP67 |
0 to voltage supplied |
  |
|
|
|
|
|
|
|
|
|
