Midrange stroke length (150 to 900 mm or up to 36 in.)

Click on a linear sensor

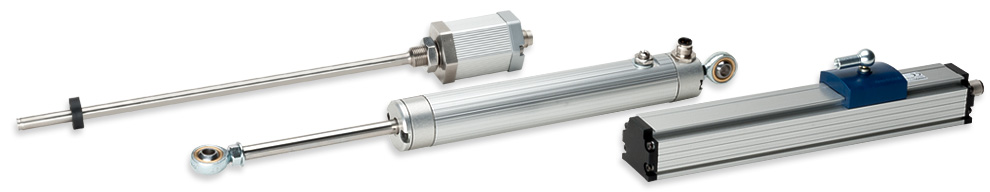

When your application requires a midrange stroke-length of six to 36 inches (150 - 900 mm) the following sensors are possible solutions to your application needs.

TE1, TEX, LWH, TLH, LWG, LWX, TH1, TLM

TE1 Series

• Push rod or return-spring versions

• Compact 18 mm square profile

• Linearity to ±0.075 %

• Unaffected by magnetic fields

• Current or voltage output

• Increasing or decreasing output

• Life: 100 million movements

• Repeatability: ±0.002 mm

Product Information
TEX Series
  • Spring return mounting

  • Pivot head mounting

  • Shaft actuated

  • Compact size

  • Stroke lengths 10 to 300 mm

  • Repeatability ≤ 0.01 mm

  • Sealed to IP 67

  • Independent linearity to ±0.05 mm

Product Information
LWH Series
  • Shaft actuated

  • Snap-on mounting

  • Repeatability to 0.01 mm

  • Independent linearity to ±0.04%

  • Stroke lengths from 75 to 900 mm

Product Information
TLH Series
  • Side actuated, rodless design

  • No side-load offset errors

  • Repeatability to 0.01 mm

  • Independent linearity to ±0.02%

  • Stroke lengths from 100 to 4000 mm

Product Information
LWG Series
  • Spherical bearing mount

  • Protection class IP 65

  • Repeatability 0.01 mm

  • Independent linearity to 0.04%

  • Stroke lengths of 75 to 750 mm

Product Information
LWX Series
  • Protection class IP 67

  • Withstands oil and water environments

  • All metal housing

  • Corrosion resistant

  • Patented differential pressure compensation system

  • Independent linearity to 0.04%

  • Shaft protected version available

  • Stroke lengths of 75 to 750 mm

Product Information
TH1 Series
  • For hydraulic and pneumatic applications

  • Rod style transducer

  • Magnetostrictive non-contact technology

  • Unlimited mechanical life

  • No velocity limit for marker

  • Outstanding linearity to < 50 µm

  • Resolution to 16 bits regardless of stroke length

Product Information
TP1 Series
  • Magnetostrictive touchless technology

  • Stroke lengths from 50 to 4500 mm

  • Outstanding linearity: to 10 micrometers

  • Resolution to 0.001 mm regardless of stroke length

  • No reference start position needed

  • Programmable end points on analog model

  • No velocity or acceleration limits for position markers

  • Low temperature coefficient to 15 ppm

  • Analog, Quadrature, Start/Stop, SSI and DyMoS interface

  • Cable or connector versions

  • Protection class to IP 68

  • Unlimited mechanical life

Product Information
