Short stroke lengths (<150 mm or 6 in.)

Click on a linear sensor

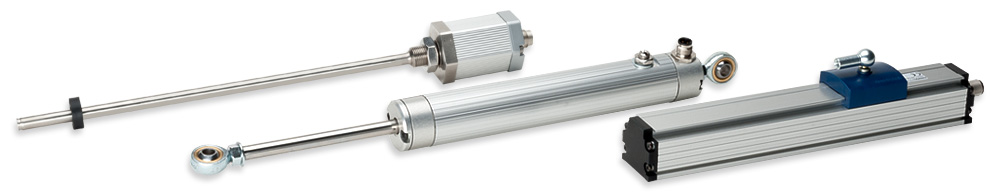

When your application requires a short stroke-length of less than six inches (<150 mm) the following sensors are possible solutions to your application needs.

TE1, TR/TRS, T/TS, LWG, LWX, LWH, TLH, KL, TEX

TE1 Series

• Push rod or return-spring versions

• Compact 18 mm square profile

• Linearity to ±0.075 %

• Unaffected by magnetic fields

• Current or voltage output

• Increasing or decreasing output

• Life: 100 million movements

• Repeatability: ±0.002 mm

Product Information
TR/TRS Series

  • Through-shaft design

  • Enclosed return spring

  • Plug and Cable connections

  • Repeatability to ±0.002 mm

  • Independent linearity to ±0.075%

  • Stroke lengths of 10, 25, 50, 75 and 100 mm

Product Information
T/TS Series

  • Through-shaft design

  • Load-free operation

  • Plug and Cable connections

  • Repeatability to ±0.002 mm

  • Independent linearity to ±0.075%

  • Stroke lengths of 25, 50, 75, 100 and 150 mm

Product Information
LWG Series

  • Spherical bearing mount

  • Protection class IP 65

  • Repeatability 0.01 mm

  • Independent linearity to 0.04%

  • Stroke lengths of 75 to 750 mm

Product Information

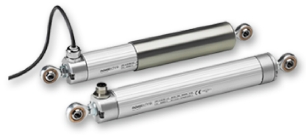

LWX Series

  • Protection class IP 67

  • Withstands oil and water environments

  • All metal housing

  • Corrosion resistant

  • Patented differential pressure compensation system

  • Independent linearity to 0.04%

  • Shaft protected version available

  • Stroke lengths of 75 to 750 mm

Product Information
LWH Series

  • Shaft actuated

  • Snap-on mounting

  • Repeatability to 0.01 mm

  • Independent linearity to ±0.04%

  • Stroke lengths from 75 to 900 mm

Product Information
TLH Series

  • Side actuated, rodless design

  • No side-load offset errors

  • Repeatability to 0.01 mm

  • Independent linearity to ±0.02%

  • Stroke lengths from 100 to 4000 mm

Product Information
KL Series

  • Linearity to ±0.025%

  • Stroke lengths 10, 25, 50, 75, and 100 mm

  • Compact size

Product Information
TEX Series

  • Spring return mounting

  • Pivot head mounting

  • Shaft actuated

  • Compact size

  • Stroke lengths 10 to 300 mm

  • Repeatability ≤ 0.01 mm

  • Sealed to IP 67

  • Independent linearity to ±0.05 mm

Product Information
