Stroke length >900 mm (>36 in.)

Click on a linear sensor

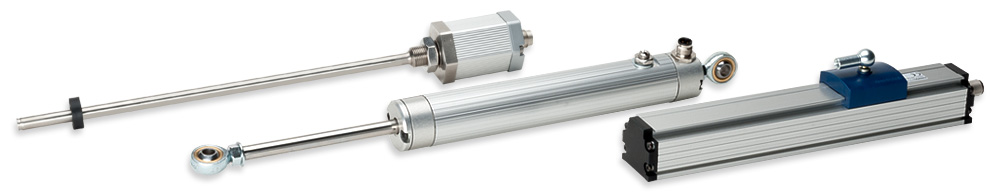

When your application requires a long stroke-length of more than 36 inches (>900 mm) the following sensors are possible solutions to your application needs:

TLH, TH1, TP1

TLH Series

  • Side actuated, rodless design

  • No side-load offset errors

  • Repeatability to 0.01 mm

  • Independent linearity to ±0.02%

  • Stroke lengths from 100 to 4000 mm

Product Information
TH1 Series

  • For hydraulic and pneumatic applications

  • Rod style transducer

  • Magnetostrictive non-contact technology

  • Unlimited mechanical life

  • No velocity limit for marker

  • Outstanding linearity to < 50 µm

  • Resolution to 16 bits regardless of stroke length

Product Information
TP1 Series

  • Magnetostrictive touchless technology

  • Stroke lengths from 50 to 4500 mm

  • Outstanding linearity: to 10 micrometers

  • Resolution to 0.001 mm regardless of stroke length

  • No reference start position needed

  • Programmable end points on analog model

  • No velocity or acceleration limits for position markers

  • Low temperature coefficient to 15 ppm

  • Analog, Quadrature, Start/Stop, SSI and DyMoS interface

  • Cable or connector versions

  • Protection class to IP 68

  • Unlimited mechanical life

Product Information
