Rotary Multi-Turn
Novotechnik multi-turn rotary sensors are available in 15 different series/models up to 100 turns.
MC1-2800 Series
Non-contacting magnetic encoder series measures up to 44 turns with 16-bit resolution over the entire measurement range and detects position even in unpowered state.
MANUALS
CAD
CONTACT
Analog Models
| Range Max | Linearity | Life (mech.) | Sealing | Output(s) | Data Sheets | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
44 turns / 15,840° |
±0.031% |
50 million movements |
IP67 |
0.25 to 4.75 V |
COMING |
|
|
|
|
|
|
|
|
|
|
44 turns / 15,840° |
±0.031% |
50 million movements |
IP67 |
0.5 to 4.5 V |
COMING |
|
|
|
|
|
|
|
|
|
Digital Models
| Range Max | Linearity | Life (mech.) | Sealing | Output(s) | Data Sheets | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
44 turns / 15,840° |
±1° |
50 million movements |
IP67 |
IO-Link |
  |
|
|
|
|
|
|
|
|
|
|
44 turns / 15,840° |
±1° |
50 million movements |
IP67 |
CANopen |
COMING |
|
|
|
|
|
|
|
|
|
RSM2800 Series (Non-Contact)
Non-contacting magnetic encoder series measures up to 16 turns with up to 16-bit resolution and detects position even in unpowered state.
MANUALS
CAD
CONTACT
Analog Models, 1 or 2 Channels
| Range Max | Linearity | Life (mech.) | Sealing | Output(s) | Data Sheets | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5,760° |
±0.031% |
50 million movements |
IP67 |
0.1 to 10 V |
 |
|
|
|
|
|
|
|
|
|
|
5,760° |
±0.031% |
50 million movements |
IP67 |
4 to 20 mA |
 |
|
|
|
|
|
|
|
|
|
|
5,760° |
±0.031% |
50 million movements |
IP67 |
0.25 to 4.75 V ratiometric to supply |
 |
|
|
|
|
|
|
|
|
|
|
5,760° |
±0.031% |
50 million movements |
IP67 |
0.25 to 4.75 V ratiometric to supply |
 |
|
|
|
|
|
|
|
|
|
Digital Models
| Range Max | Linearity | Life (mech.) | Sealing | Output(s) | Data Sheets | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5,760° |
±0.03% |
50 million movements |
IP67 |
SSI |
 |
|
|
|
|
|
|
|
|
|
|
5,760° |
±0.03% |
50 million movements |
IP67 |
SPI |
 |
|
|
|
|
|
|
|
|
|

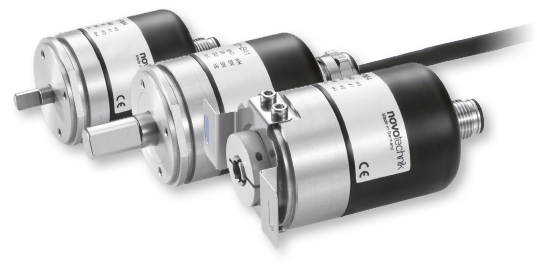

RMB-3600 Series
This non-contacting series of rotary sensors feature 14- and 16-turn multi-turn versions, solid shaft or semi-hollow-shaft versions, repeatability of less than 0.1° in a very robust housing.
MANUALS
CAD
CONTACT
5V Supply Models
| Range Max | Linearity | Life (mech.) | Sealing | Output(s) | Data Sheets | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5,760° |
±0.8 % |
100 million movements |
IP69K |
0.5 to 4.5V - 4 to 20 mA |
 |
|
|
|
|
|
|
|
|
|
24V Supply Models
| Range Max | Linearity | Life (mech.) | Sealing | Output(s) | Data Sheets | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5,760° |
±0.8 % |
100 million movements |
IP69K |
0.25 to 4.75V - 0.1 to 10 V |
 |
|
|
|
|
|
|
|
|
|
|
5,760° |
±0.036 % |
100 million movements |
IP69K |
SSI |
|
|
|
|
|
|
|
|
|
|
ML Series (Geared)
Ultra-compact 13 mm profile sensors in models with 6 to 100 revolutions.
MANUALS
CAD
CONTACT
| Range Max | Linearity | Life (mech.) | Sealing | Output(s) | Data Sheets | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2,160° |
±2% |
15 million movements |
IP65 |
0 to supply voltage |
 |
|
|
|
|
|
|
|
|
|
|
3,240° |
±0.5% |
15 million movements |
IP65 |
0 to supply voltage |
 |
|
|
|
|
|
|
|
|
|
|
8,280° |
±0.25% |
15 million movements |
IP65 |
0 to supply voltage |
 |
|
|
|
|
|
|
|
|
|
|
17,280° |
±0.25% |
15 million movements |
IP65 |
0 to supply voltage |
 |
|
|
|
|
|
|
|
|
|
|
34,560° |
±0.25% |
15 million movements |
IP65 |
0 to supply voltage |
 |
|
|
|
|
|
|
|
|
|
PD2300 Series (Geared)
Bushing mount sensor series is available in 3, 5 and 10 turn models.
MANUALS
CAD
CONTACT
| Range Max | Linearity | Life (mech.) | Sealing | Output(s) | Data Sheets | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1,080° |
±0.15% |
1 million movements |
IP50 |
0 to supply voltage |
|
|
|
|
|
|
|
|
|
|
|
1,800° |
±0.15% |
1 million movements |
IP50 |
0 to supply voltage |
|
|
|
|
|
|
|
|
|
|
|
3,600° |
±0.15% |
1 million movements |
IP50 |
0 to supply voltage |
 |
|
|
|
|
|
|
|
|
|
OBSOLETE — CONTACT US FOR REPLACEMENT PRODUCT LINE
GP Series
(Geared at 3:1, 5:1, 10:1)
Geared multi-turn potentiometers with 3:1, 5:1 and 10:1 reduction ratios.
MANUALS
CAD
CONTACT
| Range Max | Linearity | Life (mech.) | Sealing | Output(s) | Data Sheets | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1,095° + 15° |
±0.05% |
100 million movements |
IP40 |
0 to supply voltage |
 |
|
|
|
|
|
|
|
|
|
|
1,830° + 30° |
±0.05% |
100 million movements |
IP40 |
0 to supply voltage |
 |
|
|
|
|
|
|
|
|
|
|
3,800° + 45° |
±0.05% |
100 million movements |
IP40 |
0 to supply voltage |
 |
|
|
|
|
|
|
|
|
|
IGP Series
(Geared at 3:1, 5:1, 10:1)
Heavy duty geared multi-turn potentiometers with 3:1, 5:1 and 10:1 reduction ratios.
MANUALS
CAD
CONTACT
| Range Max | Linearity | Life (mech.) | Sealing | Output(s) | Data Sheets | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1,095° + 15° |
±0.05% |
100 million movements |
IP65 |
0 to supply voltage |
 |
|
|
|
|
|
|
|
|
|
|
1,830° + 30° |
±0.05% |
100 million movements |
IP65 |
0 to supply voltage |
 |
|
|
|
|
|
|
|
|
|
|
3,800° + 45° |
±0.05% |
100 million movements |
IP65 |
0 to supply voltage |
 |
|
|
|
|
|
|
|
|
|
DISCONTINUED — REPLACED BY RMB-3600 SERIES
