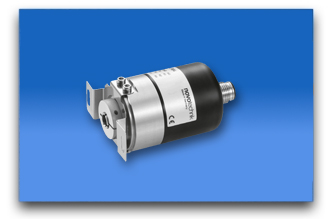

44-Turn Magnetic Encoder/Rotary Sensor

The MB1-3600 Series of heavy duty multi-turn magnetic sensors are designed to be a high tech and economical alternative to geared and optical encoders. These sensors count up to 44 turns while monitoring angle 0 to 15,840°. They will continue to count turns and angle even if power is removed, retain the value for years, and report the correct value when power is restored.

MB1 Series Key Specifications:

  • Absolute multi-turn

  • Up to 44 turns

  • Linearity ≤ 1°

  • Repeatability ≤ ±0.1°

  • Single and multi-channel versions

  • Solid or hollow-shaft options

  • Single and multi-channel versions

  • Independent linearity to ≤ ± 0.0311% of F.S.

  • Output options: IO Link, CANopen and CAN SAE J1939

  • Housing OD=36.5 mm

  • IP rating options: IP67, IP69K

  • No gears, no optics, no batteries

MB1-3600 Benefits

This multi-turn sensor provides engineers with the following unique benefits.

▶ No gears, non-contact sensing means long life

▶ Counts up to 44-turns (15,840°)

▶ Solid or hollow-shaft versions

▶ Works during power loss, counting turns during power loss and retaining count

▶ Maintains accuracy during power loss

▶ Continues to work upon power restoration

▶ Combined counting and position sensing in one part provides accuracy and flexibility

▶ High accuracy with no optics means lower cost
