Displays and Signal Conditioners

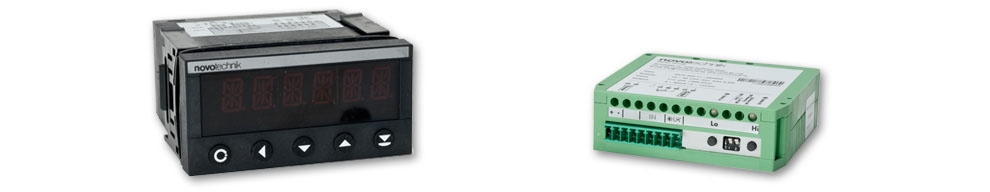

The Displays and Signal Conditioners page covers Novotechnik’s line of signal conditioners, displays and process control indicators. Novotechnik signal conditioners provide a highly stable constant voltage to position sensors to help ensure accurate interference-free signal transmission over long distances.


MUW 200
  • Interfaces with Linear Series: TLH and LWH
  • Standardized ouput signals:
    0 to 10 V
    ± 10
    0 to 20 mA
    4 to 20 mA

Data Sheet


MUP 80
  • Analog signal conditioner for potentiometric linear and rotary sensors
  • High impedance input for potentiometer
  • Basic version with fixed amplification
  • Normalized outputs:
    0 to 10 V or 4 to 20 mA

Data Sheet


MUP 100
  • Interfaces with potentiometric and angular position sensors
  • Standardized ouput signals:
    0 to 10 V
    ± 10 V
    0 to 20 mA
    4 to 20 mA

Data Sheet


MUP 110/160
  • Interface module for position sensors
  • Available with electrical isolation (DC/DC transformer) as an option
  • Standardized output signals
    0 to 10 V
    0 to 20 mA
    4 to 20 mA
  • The zero point and range can be adjusted independently

Data Sheet


MUP 410
  • High precision signal conditioner interfaces with potentiometric position sensors
  • Auto-calibration: one button press to set zero and another for span
  • User selectable output of either 0 to 10 V or 4 to 20 mA

Data Sheet


MUP 400
  • High precision signal conditioner interfaces with potentiometric position sensors
  • Auto-calibration: one button press to set zero and another for span
  • User selectable output of either 0 to 10 V or 4 to 20 mA
DISCONTINUED

Data Sheet


MUK
  • Signal conditioner
  • Supplies highly stable voltage to sensors
  • Standard outputs:
    0 to 10 V
    ±10 V, 0 to 20 mA
    4 to 20 mA
  • Adjustable zero point and range
  • Outstanding typ. Linearity: 0.01 % of F.S.
  • Sealed housing IP 66

Data Sheet


MAP 4000
  • Programmable process control indicator with control switches
  • Inputs for: potentiometers, current / voltage, temperature sensors, and more
  • Accuracy of 0.1% + 1 digit
  • Display range of -99 999 to 999 999
  • Up to 40 meas./sec
  • RS 232 or RS 485 outputs*
  • Three power supply options
  • Displays units

Data Sheet


MAP 300/400
  • Process control indicator with digital display
  • Precision of 0.01%
  • Scope of measurement range -9999 to +40,000
  • Standardized output up to 32 meas/s
  • Tare function
  • Peak memory

Data Sheet


SR 245
  • Digital Indicator
  • Optimized for sensors
  • 4 relay set-point outputs
  • RS232 output
  • Voltage or current analog output

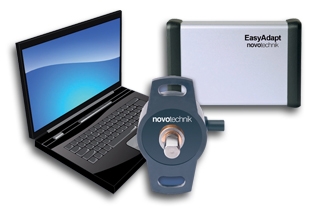

EasyAdapt

EasyAdapt is a programming tool for the programmable Vert-X MH-C2 Series of rotary angle sensors. It includes a tool that connects between a PC and a MH-C2 sensor as well as a software programming application that runs on Windows™ XP, Vista, or Windows 7.

Products that are user programmable include Vert-X Series: 1300, 2200, 3700, 5100, 8800, 13E, 22E, 27E, 31E, 37E and 90E.

Manual
