Applications – Actuators and Valve Control

CALL 1-800-667-7492
Butterfly Valve

Product: RFC4800

A well known actuator manufacturer needed more flexibility in placing an angle sensor for their new butterfly valve product. Novotechnik replaced their existing RSC 2800 non-contact sensor with their RFC 4800 touchless magnetic sensor enabling them to place the magnetic pickup in a separate location from the main sensor. The RFC 4800 sensor enabled increased precision and reduced hysteresis inherent in a shaft-type sensor.

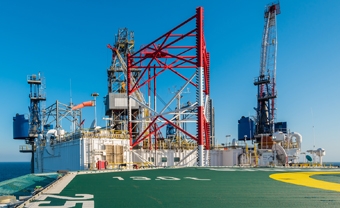

Large Valves, Marine Deck Machines

Product: TH1

On large marine vessels, ultra-reliable deck machinery is critical to a safe and profitable maritime operation. A gold standard manufacturer, with a household-known name, needed to track valve position of an oil flow regulator for a 2,300 HP winch motor on a line of machinery. This in-cylinder application is met with TH1 250 linear position sensors.

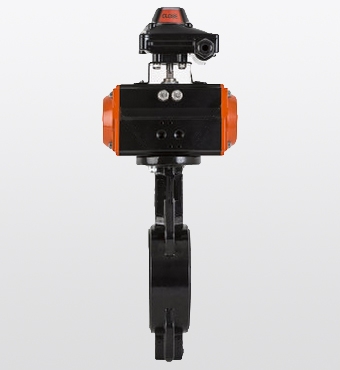

Underwater Butterfly Valve

Product: RFD 4000

Completely submerged at a depth of approximately 13 feet, a butterfly valve manufacturer found the RFD 4000 touchless angle sensor met their specifications. Since they are sealed to IP 69K, constant immersion is not an issue. These angle sensors are very compact and use touchless technology. The sensing base component accurately tracks the position of a magnetic pickup attached to the moving valve stem, providing flexibility in placement and usability in a tight space.

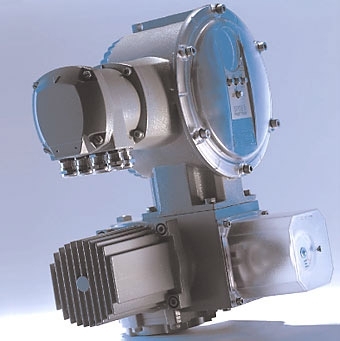

Smart Gate Valves

Product: SP 2800

Invensys selected Novotechnik’s SP 2800 Series angle sensors for their smart positioner used for closed loop feedback applications. The sensor is mounted inside the housing and is renown for its reliability.

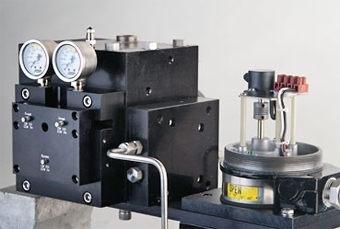

Product: PL300

One example of an actuator manufacturer that made full use of PL 300 Rotary Position Sensors is shown here. By being able to customize an off-the-shelf sensor they could almost instantly design-on-the-fly to adapt a standard non-contact sensor to their application's exact requirements. All with repetition accuracy to 0.1°

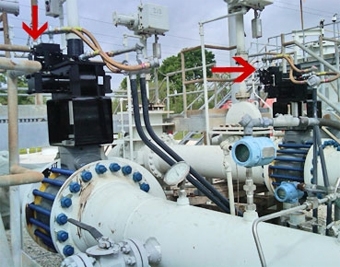

Pipeline Back Pressure Control

Product: Position transducer RSC2800

A major oil pipeline company in Texas needed to improve back pressure control to optimize oil flow and prevent equipment failure. Novotechnik’s RSC28 sensors used in actuators along the pipeline provided the position of valves from 0 to 90° with repeatable angle measurement to within ±0.20°.
