Hollow Shaft

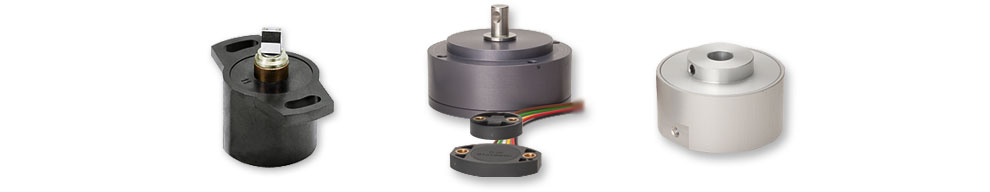

Novotechnik hollow shaft angle sensors offer high quality construction, precision and accept various shaft sizes and configurations.
GL Series
Hollow shaft hole sizes from 6 to 30 mm, metal housing and resolution < 0.1° are features of the GL Series.
MANUALS
CAD
CONTACT
| Range Max | Linearity | Life (mech.) | Sealing | Output(s) | Data Sheets | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
150°; 354° |
±0.25% |
10 million movements |
IP63 |
0 to supply voltage |
  |
|
|
|
|
|
|
|
|
|
|
140°; 340° |
±0.25% |
10 million movements |
IP63 |
0 to supply voltage |
 |
|
|
|
|
|
|
|
|
|
|
150°; 340° |
±0.25% |
10 million movements |
IP63 |
0 to supply voltage |
 |
|
|
|
|
|
|
|
|
|
|
340° |
±0.25% |
10 million movements |
IP63 |
0 to supply voltage |
 |
|
|
|
|
|
|
|
|
|
Sample quantities for large projects. Current minimum order quantity 100 pieces.
WAL 200 Series
This series accepts a D-shaft and features resolution < 0.3° and low cost.
MANUALS
CAD
CONTACT
| Range Max | Linearity | Life (mech.) | Sealing | Output(s) | Data Sheets | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
280° |
±1% |
2 million movements |
IP50 |
0 to supply voltage |
 |
|
|
|
|
|
|
|
|
|
Sample quantities for large projects. Current minimum order quantity 100 pieces.
WAL 300/305 Series
This series accepts a D-shaft and features resolution < 0.3° and low cost.
MANUALS
CAD
CONTACT
| Range Max | Linearity | Life (mech.) | Sealing | Output(s) | Data Sheets | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
340° |
±2% |
4 million movements |
IP50 |
0 to supply voltage |
 |
|
|
|
|
|
|
|
|
|
Sample quantities for large projects. Current minimum order quantity 100 pieces.
WAL 340 Series
This series accepts a D-shaft and features an alignment notch built into the housing, resolution ≤ 0.3° and repeatability of ≤0.3°.
MANUALS
CAD
CONTACT
| Range Max | Linearity | Life (mech.) | Sealing | Output(s) | Data Sheets | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
290° |
±1% |
20 million movements |
IP65 |
0 to supply voltage |
 |
|
|
|
|
|
|
|
|
|
Sample quantities for large projects. Current minimum order quantity 100 pieces.
