RFC4800 Series of Angle Sensors
Magnetic Angle Sensors and Applications


Special features

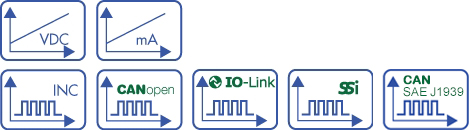

  • Analog outputs: voltage, current
  • Easy to implement 3-wire analog versions
  • Partial and fully redundant versions are ISO-pulses and ISO 11452 tested for safety and mission critical applications.
  • 5 V or 24 V or 5/24 V supply
  • No moving sensor parts
  • Range: 0° to 30° to 0° to 360° depending on model
  • Unlimited mechanical life
  • Touchless technology
  • Measures through materials
  • 12-bit resolution (0.09°)
  • Repeatability <0.1°
  • Digital outputs: incremental encoder, SPI, CANopen, IO-Link and SSI


Incremental Interface Resolution

1024 ppr – 4096 increments resolution
512 ppr – 2048 increments resolution
512 ppr – 1024 increments resolution
512 ppr – 512 increments resolution

Other resolutions available
