Programmable Rotary Sensors

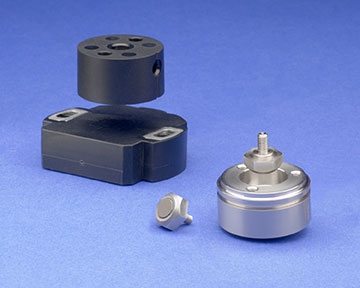

Novotechnik’s Vert-X 22E series of touchless sensors use a magnetic pickup that is secured to your application so there is no direct mechanical linkage between shaft and the measuring system, and therefore no wear.

The 13 to 37 mm sensors in this series incorporate a microprocessor to provide up to 360º absolute angle measurements and provide programmability either at the factory or by customers.

• 5 V or 24 V supply
• 22 mm diameter
• Touchless technology
• Resolution to 14 bits
• Repeatability ≤ 0.1 degrees
• Available outputs: SSI Incremental (A, B, Z) PWM, SPI 10 to 90% of power supply 0.5 to 4.5 V (5 V version only) 0.1 to 10 V (24V version only) 4 to 20 mA (24V version only)
• Customer programmable

Definition

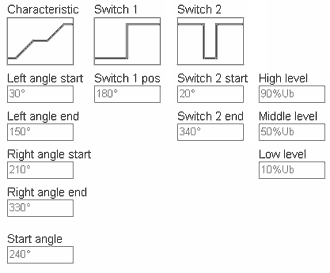

The definition area allows you to change the output characteristic and the two switch ouputs.
