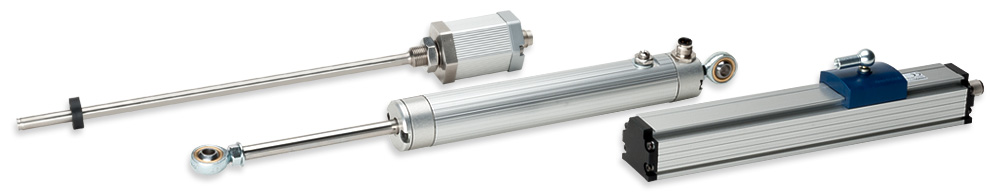

Linear Touchless Sensors

Novotechnik’s linear touchless position sensors use a permanent magnet that is secured to the moving part on your application to detect its position. There are two varieties, one is free-floating and the other glides along rails integrated into the sensor housing. All our sensors come with unsurpassed customer support.

TF1 Series

Advanced inductive technology sensors are magnetic field resistant, wear-free and robust.
• Resolution up to 1 μm
• Reproducibility up to 2 μm
• 10 kHz update rate

MANUALS

CAD

CONTACT

Stroke Length	Absolute Linearity	Life (mech.)	Sealing	Outputs
100 to 1,000 mm	< ±0.025% F.S.	∞	IP67	0.1 to 10V, 4 to 20 mA
100 to 1,000 mm	< ±0.025% F.S.	∞	IP67	SSI
100 to 1,000 mm	< ±0.025% F.S.	∞	IP67	CANopen
100 to 1,000 mm	< ±0.025% F.S.	∞	IP67	IO-Link

TP1 Series

Unsurpassed specifications for a magnetostrictive sensor, plus great support.

MANUALS

CAD

CONTACT

Stroke Length	Linearity	Life (mech.)	Sealing	Outputs
50 to 4,250 mm	≤ ±0.02 %	∞	IP68	0.1 to 10 VDC, -10 to +10 VDC, 0.1 to 20 mA, 4 to 20 mA
50 to 4,250 mm	< ±50 μm up to 1,000 mm < ±80 μm up to 2,500 mm < ±120 μm up to 4,250 mm	∞	IP68	Start-Stop-Pulse
50 to 4,250 mm	< ±25 μm up to 250 mm < ±30 μm up to 750 mm < ±50 μm up to 1,000 mm < ±80 μm up to 2,500 mm < ±120 μm up to 4,250 mm	∞	IP68	SSI
50 to 4,250 mm	< ±25 μm up to 250 mm < ±30 μm up to 750 mm < ±50 μm up to 1,000 mm < ±80 μm up to 2,500 mm < ±120 μm up to 4,250 mm	∞	IP68	CANopen
50 to 4,250 mm	< ±25 μm up to 250 mm < ±30 μm up to 750 mm < ±50 μm up to 1,000 mm < ±80 μm up to 2,500 mm < ±120 μm up to 4,250 mm	∞	IP68	Incremental Quadrature
50 to 4,250 mm	< ±25 μm up to 250 mm < ±30 μm up to 750 mm < ±50 μm up to 1,000 mm < ±80 μm up to 2,500 mm < ±120 μm up to 4,250 mm	∞	IP68	IO-Link
